  • Vertical Metal Hammer Crusher

    The vertical metal hammer crusher is designed for efficiently processing various types of metal waste, including scrap steel and aluminum. It features a vertical rotor with robust hammers that crush materials into smaller, uniform pieces. This equipment offers high capacity, energy efficiency, and low wear, making it suitable for metal recycling operations.

HomeHot productVertical Metal Hammer Crusher
Video Overview Gallery Application Features Sepcifications
Video
Overview

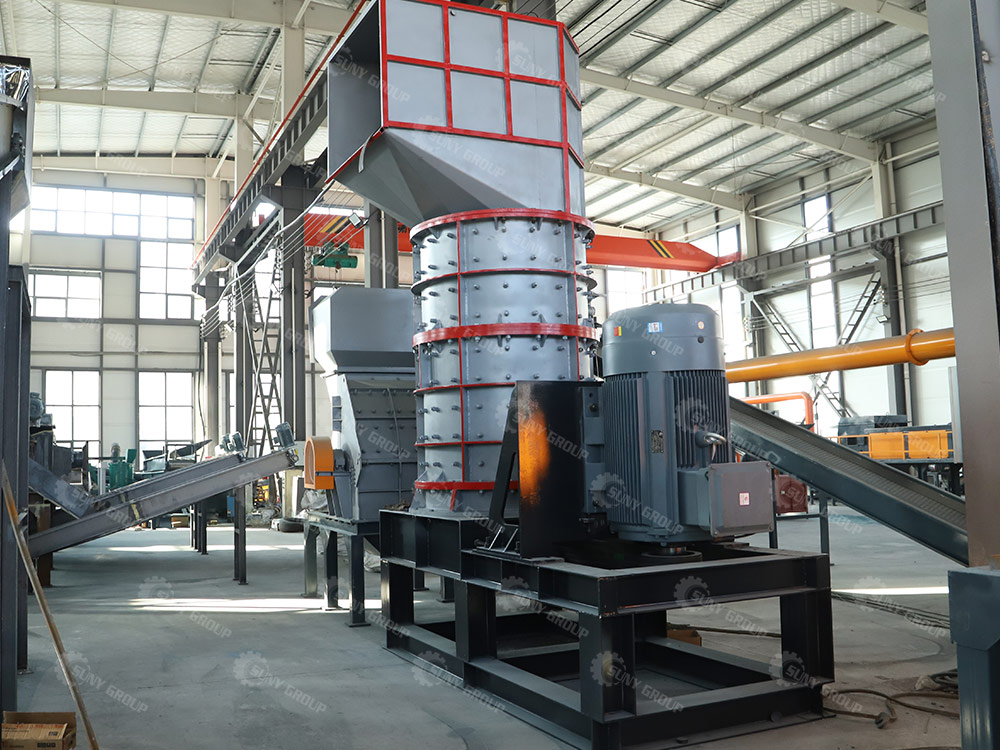

Vertical Metal Hammer Crusher

Vertical metal hammer crusher is mainly used in the fields of scrap metal recycling, to clean out the different materials on metal surface and separate different metals out for further processing.

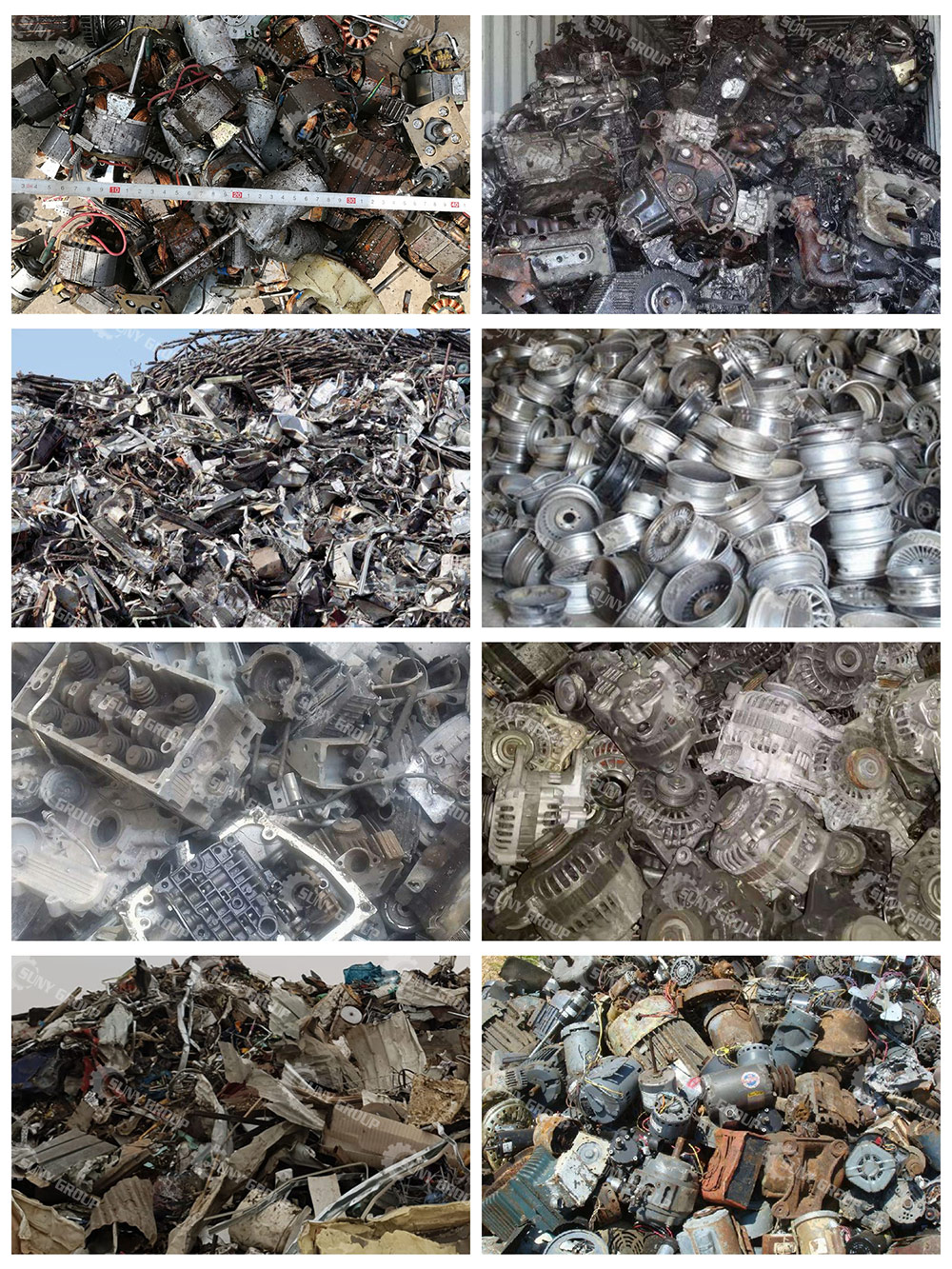

Vertical Metal Hammer Crusher raw-material
Gallery

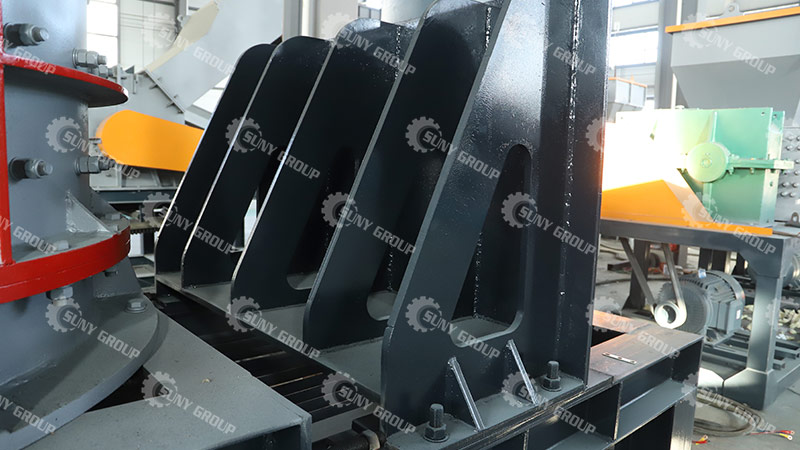

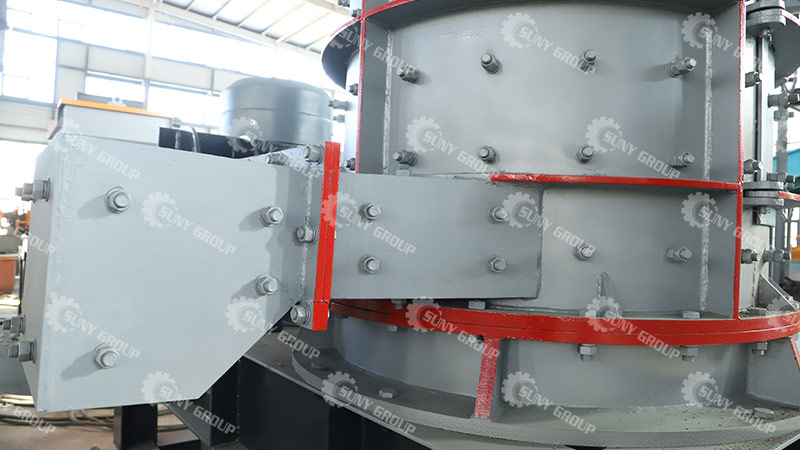

Vertical Metal Hammer CrusherVertical Metal Hammer CrusherVertical Metal Hammer CrusherVertical Metal Hammer Crusher

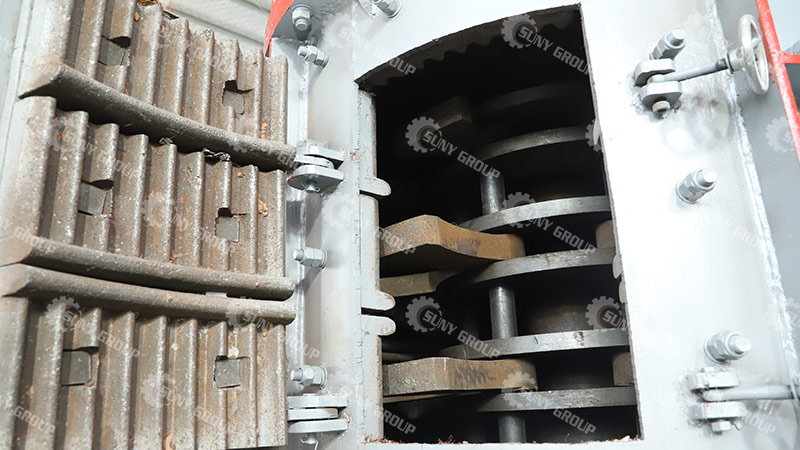

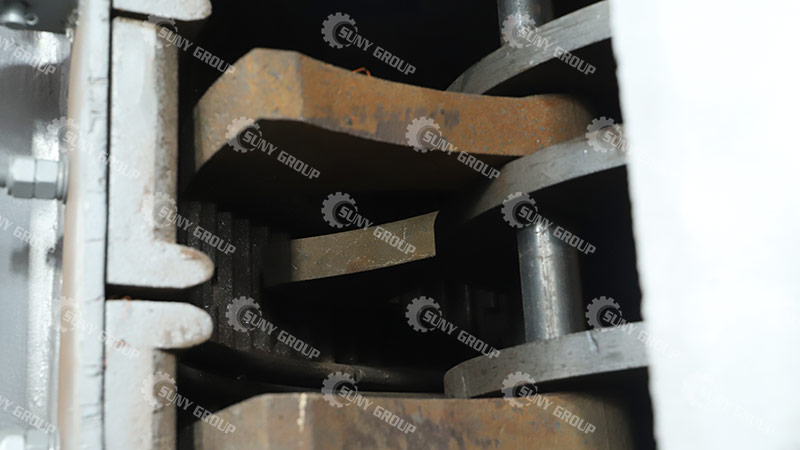

Vertical metal hammer crusher will crush materials into the crushing chamber between hob plate and wear resistant lining plate. Through the hob grinding, metal surface will be clean and different materials are separated out. Then materials get into discharge hopper through the clearance of hob plate and machine body, and discharged finally. The final metal particle is easy to transport, reduce transportation and storage cost.

Features

1. High strength welding casing;

2. Vertical opposite casing, easy to maintain;

3. High tenacity wear resistant steel casting hammer, hob and lining plate, easy change and long service life;

4. High usage coefficient bearing, reduce bearing failure caused by improper operation;

5. The output size can adjust;

6. Independent electrical control box, PLC control.

Sepcifications
Model ZY1000 ZY1200 ZY1500
Capacity(kg/h) 800 – 1000 1500 – 2000 2000 – 3000
Power(kw) 75kw*2 90kw*2 132kw*2
Spindle speed(rpm) 650 650 672
Rotating diameter(mm) 1000mm 1500mm 1500mm
Number of hammers 2pcs 4pcs 2pcs
Unit weight of hammer head 20kg 25kg 30kg
Number of Hobs 36pcs 36pcs 36pcs
Unit weight of hob 40kg 40kg 42kg
Kicking device Active type Active type Active type
Power of hydraulic station 2.2kw 2.2kw 2.2kw
Hammer head material High manganese alloy steel High manganese alloy steel High manganese alloy steel
Equipment weight(tons) 9t 12t 18t
Equipment size(mm) 1200* 1200*3000 1500* 1500*3200 1800* 1800*3500
