  • Single Shaft Shredder

    The single shaft shredder is a versatile machine designed for shredding various materials, including plastics, rubber, wood, and electronic waste, etc. It uses a rotating shaft with sharp blades to break down materials into smaller, uniform pieces. This equipment offers efficient processing, reduces waste volume, and is suitable for recycling operations.

HomeHot productSingle Shaft Shredder
Video Overview Gallery Application Features Sepcifications
Video
Overview

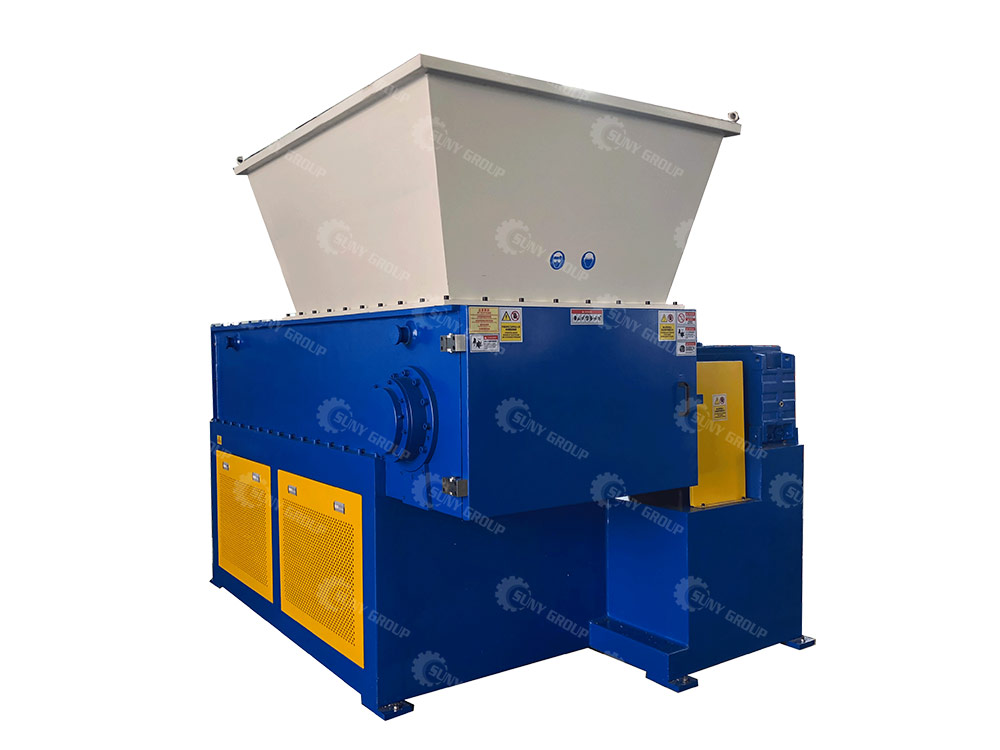

Single Shaft Shredder Machine adopts European advanced technology, is mainly applied in the crushing and recycling of various thick wall scrap materials and leftover materials in the plastic and rubber industry, can effectively crush extra thick, strong toughness and large materials.

Single Shaft Shredder Single Shaft Shredder raw-material-output
Gallery
Single Shaft ShredderSingle Shaft ShredderSingle Shaft ShredderSingle Shaft Shredder

Single shaft shredder is suitable for shredding the following materials: plastic bottles, cardboard, woven bags, plastic lumps like PP. PE, PET. PC. ABS. nylon, plastic pipes, film, plastic moulds, textiles, woven bags, electronic waste, cable, aluminum cans, paper, wood, sponge, foam, etc.

Features

1.Single shaft shredder consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block.

2.The blade can be used in four directions and long service life. Blade quality have 9CrSi, Cr12MoV, SKD- II, D2 etc. Can be customized according to customer.

3. The screen can be changed quickly, the aperture of the mesh is able to control the size of the output material. Special screen can be designed according to the type of your raw materials.

4. The hydraulic-driven pusher is equipped with an adjustable guide block and adopts advanced sealing design. Ash chute – remove the dust from the pusher in the shredding process.

Sepcifications
Model Capacity (kg/h) Power (kw) Weight (kg) Size (m)
XR600S 600 2 2800 1.70 x 1.13 x 1.78
XR800S 800 30 4000 1.865 x 1.42 x 1.80
XR800S 1000 40 5500 2.47 x 1.42 x 2.00
XR1200S 1000-1500 55 7000 3.50 x 2.30 x 2.20
