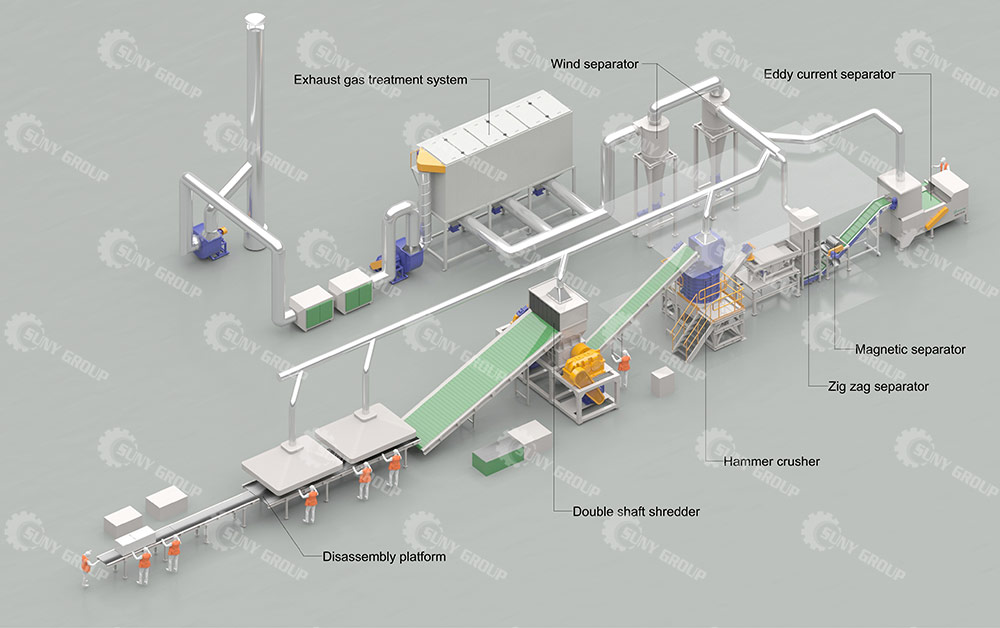

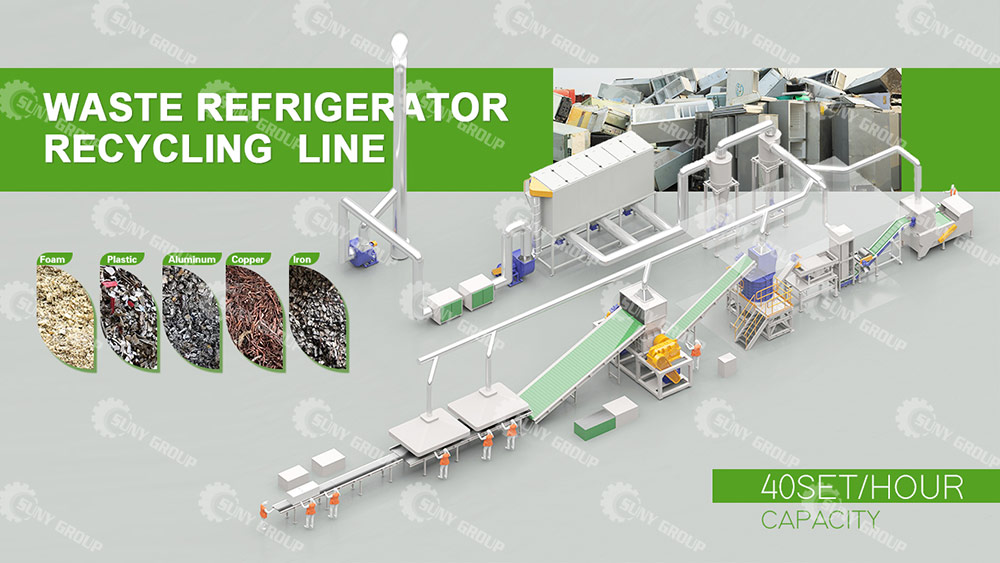

Working Process

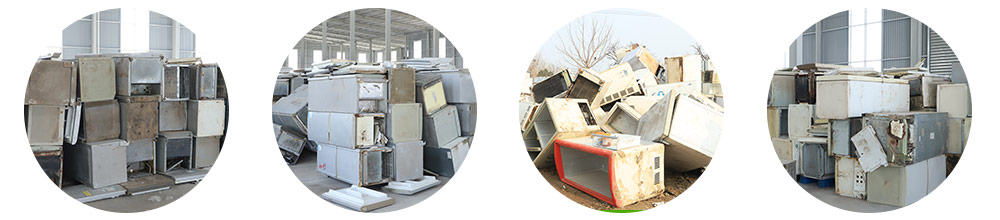

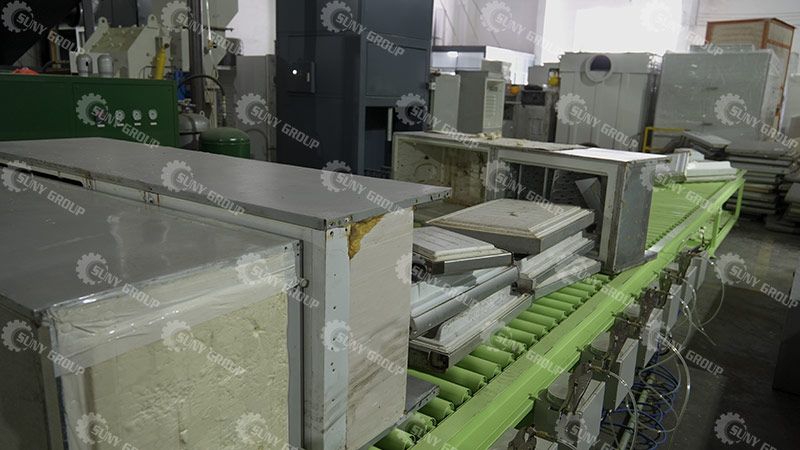

1. When the waste refrigerator (or freezer) is on the unpowered drum, disassemble it manually and remove the plastic and glass from the box;

2. According to different types of refrigerants, refrigerant recovery devices are used to classify and recover refrigerants. Remove the compressor and condenser, etc.

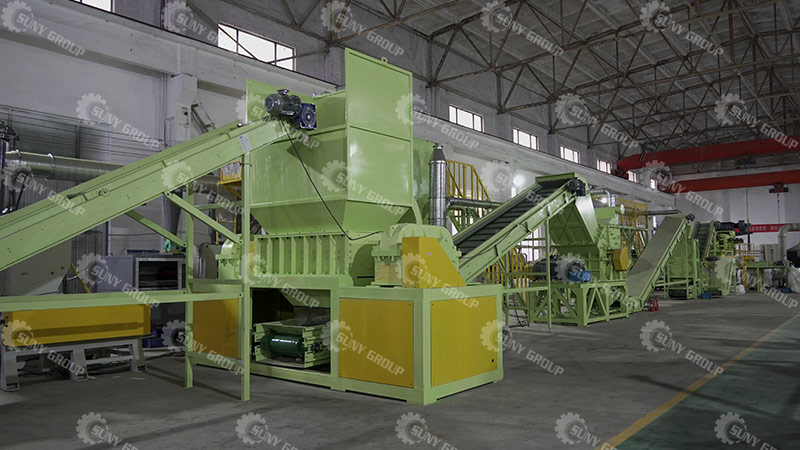

3. The whole machine enters a double-shaft shredder for shredding and preliminary crushing.

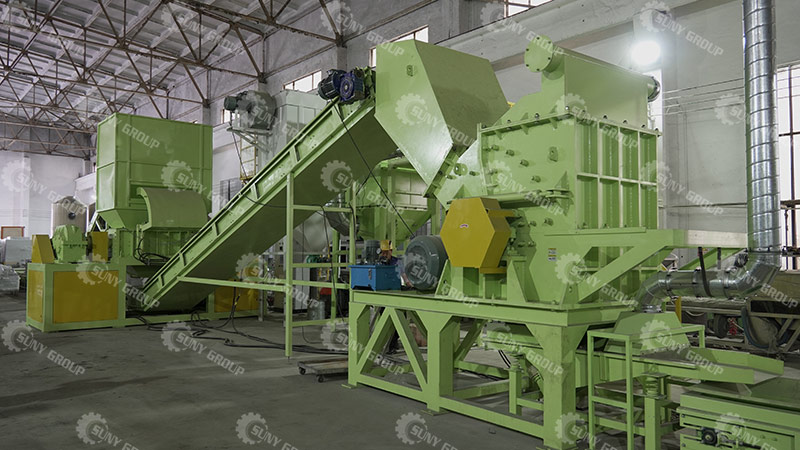

4. The materials enter the hammer crusher, and are crushed for the second time through crushing and kneading by the crusher.

5. At the same time of secondary crushing, part of polyurethane foam will be separated into foam separator by air separation. Heavy materials such as plastic and metal enter the belt conveyor.

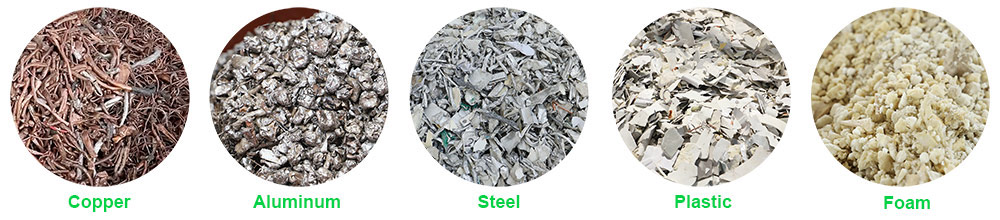

6. Materials crushed by plastic and metal are separated by magnetic separation on the belt, and then enter eddy current separation.

7. Non-ferrous metals, such as copper and aluminum, are separated by eddy current, and plastic and foam materials are transported to the airflow separation system through belts to separate pure plastic and foam. Polyurethane foam is compressed into blocks by a foam crusher.
