Working Process

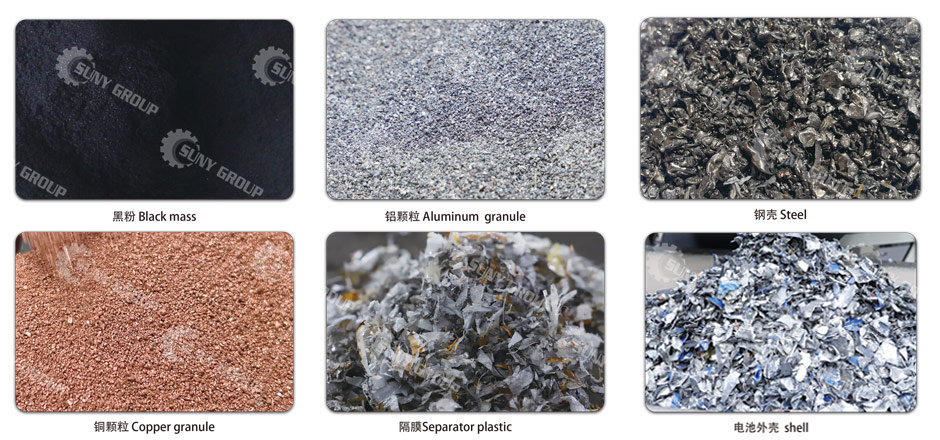

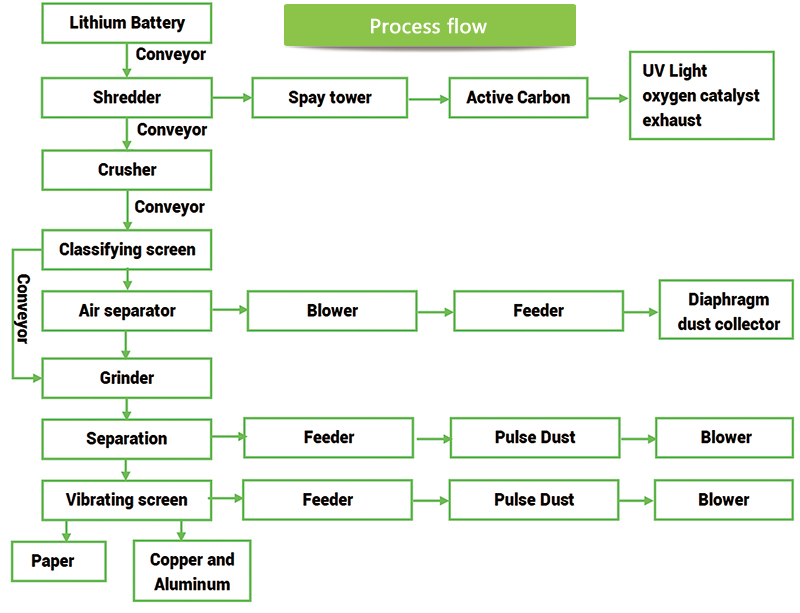

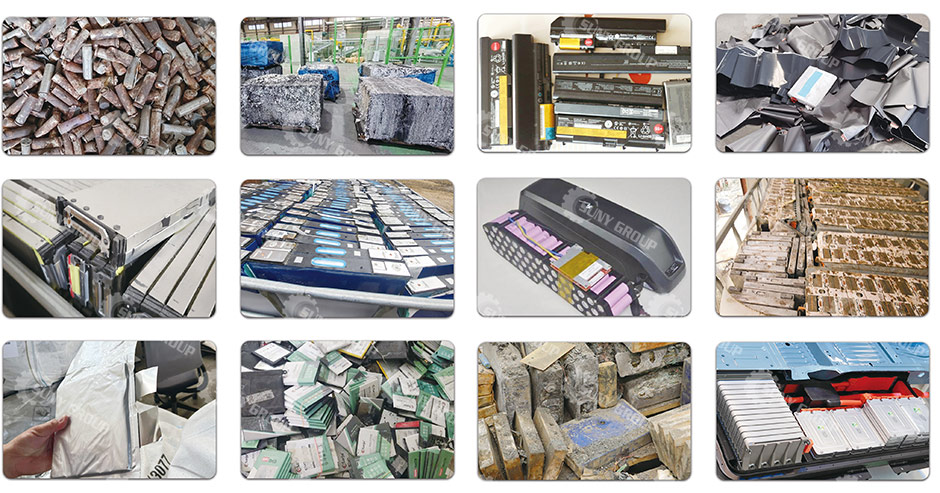

The recycling process of waste lithium ion batteries mainly comprises the following steps: after discharging the recovered waste batteries, crushing, magnetic separation, air separation, crushing, gravity separation, screening and other processes are carried out by mechanical equipment, so that the powder on the positive and negative pole pieces is effectively separated from the copper aluminum foil, and the batteries are treated as valuable materials.

Shredder: Shredded lithium batteries into smaller pieces.

Hammer crusher: For the secondary crushing of shredded materials.

Grinder: For the grinding of the crushed materials.

Separation machine: Separate the materials after being ground.

Collector: Collect and release the dust .

Pulse purifier (air cleaner): Clean all the dust produced during the operation of the whole system.

Classifying screen: Screen the materials sorted by the separation machine,and screen out of larger size metal materials.

Magnetic machine: Separate nickel from the metals.

Gravity separator: Separate those finer materials got from the screening machine and separate the metal completely.

High-pressure blower: Keep the whole system in a negative state so as to collect the materials and purity the air.
